螺纹锁紧式
液压快换接头 > 螺纹锁紧式
产品名称:BT-G 螺纹锁紧式飞翼快速接头
型号:BT-G
Online Service
E-mail Us
本产品没有PDF可供下载
Skype
材质：碳钢，表面镀环保锌
阀芯：针阀
密封件：以NBR为标准
挡圈：铁氟龙
工作温度：在标准NBR范围内，承受-25℃ + 125℃的温度。

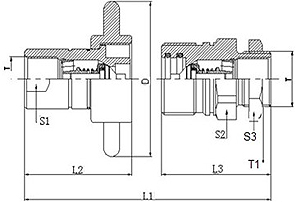

| PART NO | ISO | L1 | L2 | L3 | D | S1 | S2 | S3 | T1 | T2 |
| BTG-12F | 20 | 128.2 | 78.9 | 75.7 | 115 | 33 | 46 | 50 | 1 1/4 | 3/4 |
| BTG-16F | 25 | 145 | 88.5 | 83 | 115 | 40 | 55 | 60 | 1 1/4 | 1 |
