螺纹锁紧式
液压快换接头 > 螺纹锁紧式
产品名称:BT-KZE-B 螺纹锁紧式快速接头
型号:BT-KZE-B
Online Service
E-mail Us
本产品没有PDF可供下载
Skype
1. 采用螺纹锁紧结构，极大的提升了高压承受性能并防止意外断开
2. 钢球密封和锥阀密封两种可选
3. 钢球采用坚硬的铬合金钢球，用弹簧加载以以使固定在阀座处
4. 螺纹阀挡圈提供阀止挡，保证阀能牢靠的对中
5. 母体和公接均采用实心棒料加工，易磨部份淬火处理极大提升产品耐磨和冲击性能
6. 可与PARKER 3000 , FASTER PVVM 系列互换
| Body Size(inch) | 1/4 | 3/8 |
| Rated Pressure（Mpa) | 70 | 70 |
| Rated Flow(L/min) | 15 | 20 |
| Temperature Range | 20+80℃ | |
| Standard Seal | NBR | On request EPDM,VITON and FKM seals |
| Thread | NPT | PT |

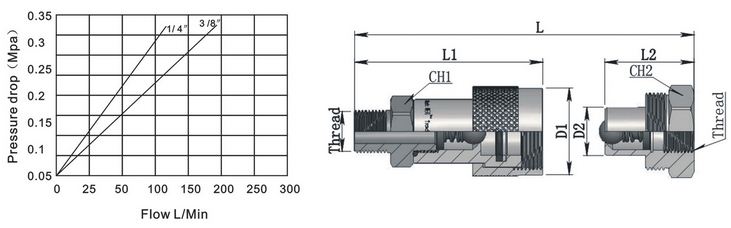

| PART NO | Thread | L | L1 | L2 | D1 | D2 | CH1 | CH2 | Ball | Poppet |
| KZE-B-02 | 1/4 | 80 | 59.5 | 32.5 | 28.5 | 15.8 | 22 | 19 | ＋ | |
| KZE-B-02 | 1/4 | 80 | 60.5 | 32 | 29 | 15.8 | 22 | 19 | ＋ | |
| KZE-B-03 | 3/8 | 85 | 73.5 | 35 | 35 | 19 | 25 | 32 | ＋ | |
| KZE-B-03 | 3/8 | 85 | 72 | 38 | 35 | 19 | 24 | 32 | ＋ |
