无阀芯
液压快换接头 > 无阀芯
产品名称:BT-ST 无阀快换接头
型号:BT-ST
Online Service
E-mail Us
本产品没有PDF可供下载
Skype
应用
这款无阀芯的快换接头，用于其中需要最大流量的用途。他们的顺畅的敞开的内孔提供任何快换接头设计中最低的压降并且是在高压水和蒸气洗衣机，洗地毯机和模具冷却剂管路之类中的理想应用。他们会经常用于食品加工，油液和燃料输送管上。
特点
该系列快换接头的特征在于球式锁定机构和没有阀机构。其快换接头有各种金属（黄铜，碳钢，SS304不锈钢）和密封材料，使它们可以与大多数油液合用。
| Body Size (Inch) | 1/8 | 1/4 | 3/8 | 1/2 |
| Rated Pressure (Psi) (Brass Nipple) | 1000 | 1000 | 1000 | 1000 |
| Rated Pressure (Psi) (Steel Nipple) | 2000 | 2000 | 2000 | 2000 |
| Rated Flow | 3 | 6 | 12 | 16 |
| Temperature | -20~+100℃ | |||

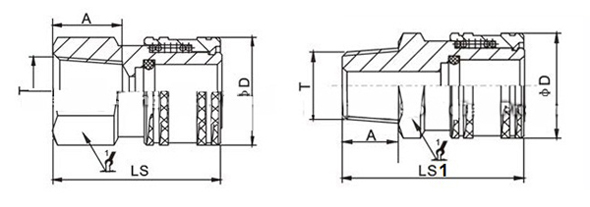

| PART NO. | LS | LS1 | ￠D | HEX | A | T |
| DT-01SF | 27 | 29 | 18 | 14 | 10 | NPT1/8 |
| DT-02SF | 37 | 39.5 | 24 | 19 | 12 | NPT1/4 |
| DT-03SF | 41.5 | 43 | 29 | 24 | 13 | NPT3/8 |
| DT-04SF | 51 | 53 | 33 | 29 | 15 | NPT1/2 |
| PART NO. | LP | LP1 | C | HEX2 | A | T |
| DT-01PF | 27 | 29 | 17 | 11 | 10 | NPT1/8 |
| DT-02PF | 37 | 39.5 | 19.5 | 14 | 12 | NPT1/4 |
| DT-03PF | 41.5 | 43 | 22.5 | 17 | 13 | NPT3/8 |
| DT-04PF | 51 | 53 | 26 | 22 | 15 | NPT1/2 |
