ISO-A Type
液压快换接头 > ISO-A Type
产品名称:BT-S6 ISO A 液压快速接头
型号:BT-S6
Online Service
E-mail Us
本产品没有PDF可供下载
Skype
1.符合ISO7241-A标准
2. 耐用球锁机构，数颗淬火硬化钢球均匀的分散了工作应力，确保高压工作下也能可靠连接，公接头连接后在无压情况下可以转动以较直管子
3.高精度的加工，保证介质顺畅流通，减少因表面粗糙引起的漩涡，导致压力损失
4.精密的设计和加工保证两个提升阀完全对中，确保联接时完全打开
5.提升阀采用内嵌式密封结构，防止高压情况下挤出
6.可与PARKER 60，HANSEN BX-75 ,FASTER HNV,CEJN X95互换

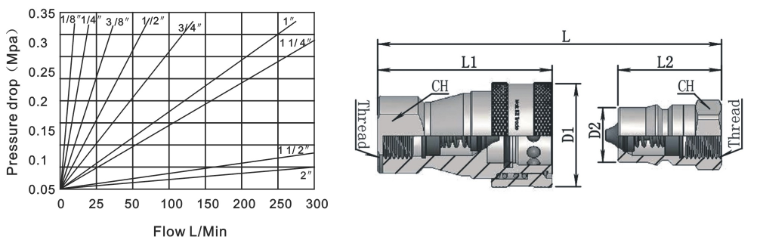

| PART NO. | ISO | Thread | L | L1 | L2 | D1 | Ch1 | Ch2 |
| BT-S6-02 | 6.3 | 1/4 | 71.1 | 50 | 35.5 | 26 | 19 | 19 |
| BT-S6-03 | 10 | 3/8 | 75 | 56 | 36.5 | 31.5 | 24 | 22 |
| BT-S6-04 | 12.5 | 1/2 | 92.4 | 68 | 46 | 38.6 | 30 | 27 |
| BT-S6-06 | 20 | 3/4 | 109 | 81.5 | 54.5 | 46.5 | 38 | 34 |
| BT-S6-08 | 25 | 1 | 135 | 96.5 | 62 | 57 | 45 | 41 |
