产品名称:BT-PT ISO 16028 平面式液压快速接头
型号:BT-PT
Online Service
E-mail Us
本产品没有PDF可供下载
Skype
1.符合ISO16028标准
2.套筒锁紧机构通过连接后旋转套筒而啮合，在使用期间沿地面拖动或剧烈振动时，套筒机构能防止接头意外断开
3.套筒覆盖挡圈并且在弹簧区域包含了防尘密封件，有助于防止杂质进入内部机构
4. 比其它款式快速接头具有更出色的高流量以及低压降性能
5. 平头阀结构能更有效的防止断开时的流体损失，以及减少重新连接时空气进入
6.可与PARKER FE, HANSEN QA 2900 ,CEJNX62 互换
| Body Size(inch) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | ||||||
| Rated Pressure（Mpa) | 31.5 | 25 | 25 | 25 | 25 | 20 | ||||||
| Rated Flow(L/min) | 11 | 22 | 45 | 75 | 100 | 185 | ||||||
| Temperature Range | 20+80℃ | |||||||||||
| Standard Seal | NBR | On request EPDM,VITON and FKM seals | ||||||||||
| Thread | NPT | PT | BSP | Metric | ||||||||

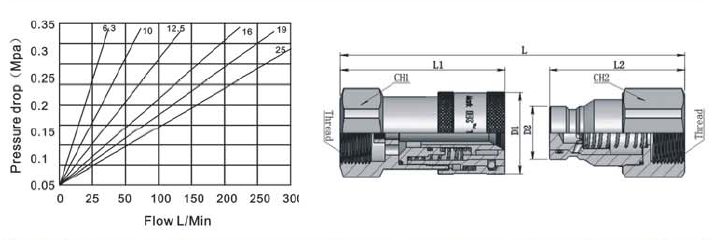

| Part No | ISO | Thread | L | L1 | L2 | D1 | D2 | CH1 | CH2 |
| BT-PT-02 | 6.3 | 1/4 | 85 | 48 | 48 | 29.5 | 16.1 | 22 | 22 |
| BT-PT-03 | 10 | 3/8 | 110 | 64 | 61.5 | 33.5 | 19.7 | 27 | 24 |
| BT-PT-034 | 10 | 1/2 | 124 | 74 | 68 | 33.5 | 19.7 | 27 | 27 |
| BT-PT-04 | 12.5 | 1/2 | 124 | 74 | 68 | 39.5 | 24.5 | 32 | 32 |
| BT-PT-046 | 12.5 | 3/4 | 131 | 78.5 | 70.5 | 39.5 | 24.5 | 36 | 36 |
| BT-PT-056 | 16 | 3/4 | 131 | 78.5 | 70.5 | 43.5 | 27 | 36 | 36 |
| BT-PT-068 | 19 | 1 | 156 | 93 | 85.5 | 49.5 | 30 | 45 | 45 |
| BT-PT-081 | 25 | 1 1/4 | 173 | 106 | 90 | 56.5 | 36 | 55 | 55 |
