ISO-B type
液压快换接头 > ISO-B type
产品名称:BT-S2 ISO B 液压快速接头
型号:BT-S2
Online Service
E-mail Us
本产品没有PDF可供下载
Skype
1.符合ISO7241-B标准
2.双密封结构，在拆卸的情况下防止介质流出，方便维护,且比ISO7241-A系列有更大的流量
3.母体和公接均采用实心棒料加工，易磨部份淬火处理极大提升产品耐磨和冲击性能
4.精密的设计和加工保证两个提升阀完全对中，确保联接时完全打开
5. PTFE支撑垫良好的保护了阀体密封圈，防止在高压情况下挤出
6.可与PARKER 60，HANSEN BX-75 ,FASTER HNV,CEJN X95互换

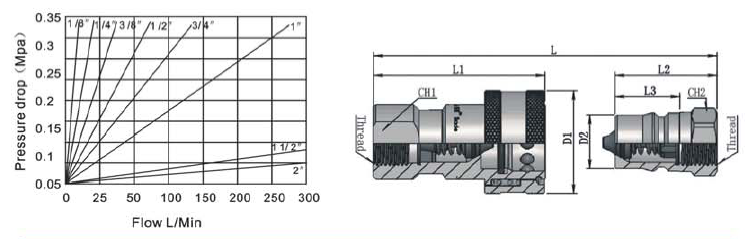

| Part No | ISO | Thread | L | L1 | L2 | L3 | D1 | D2 | CH1 | CH2 |
| BT-S2-02 | 6.3 | 1/4 | 72 | 58 | 36 | 22.5 | 28.5 | 14.2 | 19 | 19 |
| BT-S2-03 | 10 | 3/8 | 80.5 | 65 | 40 | 25 | 35 | 19.1 | 24 | 24 |
| BT-S2-04 | 12.5 | 1/2 | 96 | 77 | 46.5 | 28 | 44.5 | 23.5 | 28 | 28 |
| BT-S2-06 | 20 | 3/4 | 112 | 92 | 56 | 36 | 54 | 31.4 | 38 | 38 |
| BT-S2-08 | 25 | 1 | 125 | 103 | 63 | 45 | 63.5 | 37.8 | 41 | 41 |
