产品名称:BT-KZE-H 高压型快速接头
型号:BT-KZE-H
Online Service
E-mail Us
本产品没有PDF可供下载
Skype
特点
此快换接头带球式锁定机构和安全锁，用于需要高压能力的场合。淬火的阳接头和实心棒料结构对液压冲击引起的损坏和对侵蚀效应有最大的抵抗力。
互换标准
Parker TC-371Aeroquip FD 35
应用
该系列快换接头用于建筑业，铁路维修和救援行动。用在液压千斤顶设备上，这种快换接头消除由连接不当的螺纹式引起的耗资巨大的停工时间。对于需要高压能力的场合的应用，用牢靠的连接动作来连接时，用起来比螺纹式明显的快捷。

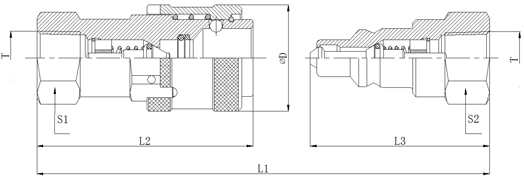

| BT | ISO | L1 | L2 | L3 | ØD | S1 | S2 | T | COD.(F) | COD.(M) |
| 06 | 10 | 89.5 | 65 | 53.5 | 32 | 24 | 24 | NPT 3/8" | KZE-H-06-06F-NPT | KZE-H-06-06M-NPT |
|
|
|
|
|
|
|
|
|
UNF 9/16" | KZE-H-06F-UNF916 | KZE-H-06M-UNF916 |
|
|
|
|
|
|
|
|
|
|
|
|
TECHNICAL DATA
| Nominal size | Max.working pressure | Rated flow | Min burst pressure | Fluid spillage | ||||||
| Coupled | ||||||||||
| BT | ISO | (bar) | (l/m) | (bar) | (cc) | |||||
| 06 | 10 | 700 | 23 | 2817 | 0.5 | |||||
