产品名称:BT-S7 ISO A 液压快速接头
型号:BT-S7
Online Service
E-mail Us
本产品没有PDF可供下载
Skype
BT-S7 系列快速接头以优质碳钢和密封材料加工制成。可以在大多数油液中使用。采用针阀结构，符合 ISO 系列之要求，可以与世界各地的工业市场上的许多接头互换应用。
BT-S7 系列快速接头，广泛应用于液压系流。这种带双单向阀机构的快速接头，用于为了设备的运行，维修而需要连接或拆卸，并且无泄露，无污染，防止污物进入管路内，保护环境。
规格 - 钢
材质：碳钢，表面镀环保锌
阀芯：针阀
密封件：以NBR为标准
挡圈：铁氟龙
工作温度：在标准NBR范围内，承受-25℃ + 125℃的温度。

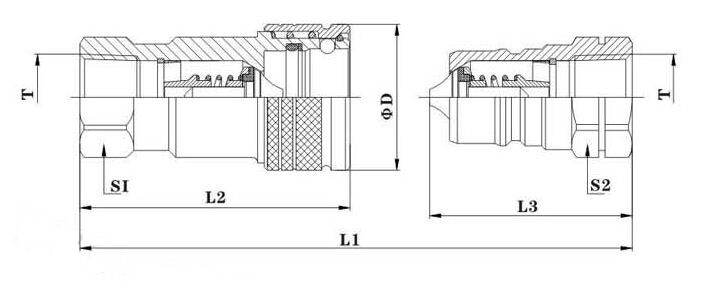

| BT | ISO | L1 | L2 | L3 | ØD | S1 | S2 | T | COD.(F) | COD.(M) |
| 4 | 6.3 | 70 | 49 | 35 | 26.2 | 19 | 19 | 1/4" BSP | S7-04F-BSP | S7-04M-BSP |
| 1/4" BSPT | S7-04F-BSPT | S7-04M-BSPT | ||||||||
| 1/4" NPT | S7-04F-NPT | S7-04M-NPT | ||||||||
| 6 | 10 | 85 | 60.5 | 42.5 | 31 | 22 | 22 | 3/8" BSP | S7-06F-BSP | S7-06M-BSP |
| 3/8" BSPT | S7-06F-BSPT | S7-06M-BSPT | ||||||||
| 3/8" NPT | S7-06F-NPT | S7-06M-NPT | ||||||||
| 8 | 12.5 | 94 | 68.5 | 46.5 | 38 | 27 | 27 | 1/2" BSP | S7-08F-BSP | S7-08M-BSP |
| 1/2" BSPT | S7-08F-BSPT | S7-08M-BSPT | ||||||||
| 1/2" NPT | S7-08F-NPT | S7-08M-NPT | ||||||||
| 3/4" UNF | S7-08F-UNF34 | S7-08M-UNF34 | ||||||||
| M22*1.5 | S7-08F-M2215 | S7-08M-M2215 | ||||||||
| 12 | 20 | 115 | 85 | 57.5 | 46 | 34 | 34 | 3/4" BSP | S7-12F-BSP | S7-12M-BSP |
| 3/4" BSPT | S7-12F-BSPT | S7-12M-BSPT | ||||||||
| 3/4" NPT | S7-12F-NPT | S7-12M-NPT | ||||||||
| 16 | 25 | 131.5 | 99.5 | 65.5 | 52 | 41 | 41 | 1" BSP | S7-16F-BSP | S7-16M-BSP |
| 1" BSPT | S7-16F-BSPT | S7-16M-BSPT | ||||||||
| 1" NPT | S7-16F-NPT | S7-16M-NPT | ||||||||
| 20 | 31.5 | 148 | 116 | 74 | 70 | 50 | 50 | 1-1/4" BSP | S7-20F-BSP | S7-20M-BSP |
| 1-1/4" BSPT | S7-20F-BSPT | S7-20M-BSPT | ||||||||
| 1-1/4" NPT | S7-20F-NPT | S7-20M-NPT | ||||||||
| 24 | 40 | 168 | 136.5 | 85 | 83 | 60 | 60 | 1-1/2" BSP | S7-24F-BSP | S7-24M-BSP |
| 1-1/2" BSPT | S7-24F-BSPT | S7-24M-BSPT | ||||||||
| 1-1/2" NPT | S7-24F-NPT | S7-24M-NPT | ||||||||
| 32 | 50 | 200.7 | 160 | 100 | 99 | 75 | 75 | 2" BSP | S7-32F-BSP | S7-32M-BSP |
| 2" BSPT | S7-32F-BSPT | S7-32M-BSPT | ||||||||
| 2" NPT | S7-32F-NPT | S7-32M-NPT |
