产品名称:BT-S4 ISO 5675 钢珠密封液压快速接头
型号:BT-S4
Online Service
E-mail Us
本产品没有PDF可供下载
Skype
1.符合ISO5675标准
2. 母体和公接均采用实心棒料加工，易磨部份淬火处理极大提升产品耐磨和冲击性能
3. 阀采用坚硬的铬合金钢球，钢球被弹簧加载以使阀牢固的固定在阀座处
4. 耐用球锁机构，数颗淬火硬化钢球均匀的分散了工作应力，确保高压工作下也能可靠连接，公接头连接后在无压情况下可以转动以较直管子
5. 尺寸从1/2-1”可选
| Body Size(inch) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | |
| Rated Pressure（Mpa) | 34.5 | 27.6 | 27.6 | 17.3 | 13.8 | |
| Rated Flow(L/min) | 11 | 22 | 45 | 105 | 185 | |
| Temperature Range | -20+80℃ | |||||
| Standard Seal | NBR | On request EPDM,VITON and FKM seals | ||||
| Thread | NPT | PT | BSP | Metric |
|
|

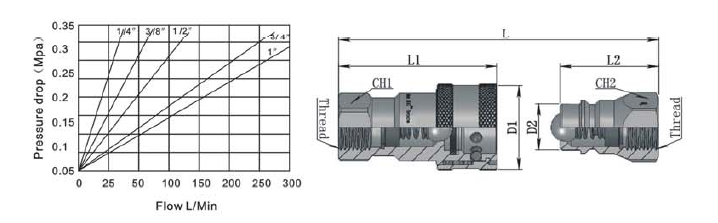

| Part No | ISO | Thread | L | L1 | L2 | D1 | D2 | CH1 | CH2 |
| BT-S4-02 | 6.3 | 1/4 | 72 | 53.5 | 36 | 27.5 | 14.2 | 19 | 19 |
| BT-S4-03 | 10 | 3/8 | 82.5 | 63 | 40 | 34 | 19 | 24 | 24 |
| BT-S4-04 | 12.5 | 1/2 | 87.5 | 66 | 43.5 | 39 | 20.5 | 27 | 27 |
| BT-S4-06 | 20 | 3/4 | 107 | 82.5 | 53.5 | 48 | 27.9 | 34 | 34 |
| BT-S4-08 | 25 | 1 | 126 | 96.5 | 63 | 56 | 31.3 | 41 | 41 |
More information
If you have any enquiry about quotation or cooperation, please feel free to email us at info@bigtreeindustrial.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
