螺纹锁紧式
液压快换接头 > 螺纹锁紧式
产品名称:BT-KSG3 螺纹型快速接头
型号:BT-KSG3
Online Service
E-mail Us
本产品没有PDF可供下载
Skype

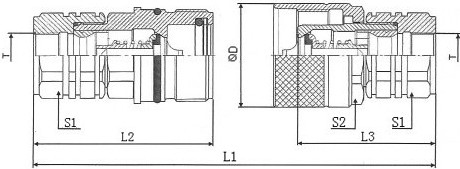

KSG3 规格-螺纹型
密封件：以NBR为标准
挡圈：铁氟龙
工作温度：在标准NBR范围内，承受-25℃ + 125℃的温度。
| BT | ISO | L1 | L2 | L3 | ØD | S1 | S2 | T | COD.(F) | COD.(M) |
| 4 | 6.3 | 93 | 59 | 58 | 35 | 19 | 30 | 1/4" BSP | KSG3-04-04F-BSP | KSG3-04-04M-BSP |
| 1/4" NPT | KSG3-04-04F-NPT | KSG3-04-04M-NPT | ||||||||
| 6 | 10 | 102.4 | 65.4 | 49 | 35 | 24 | 30 | 1/4" BSP | KSG3-06-04F-BSP | KSG3-06-04M-BSP |
| 1/4" NPT | KSG3-06-04F-NPT | KSG3-06-04M-NPT | ||||||||
| 3/8" BSP | KSG3-06-06F-BSP | KSG3-06-06M-BSP | ||||||||
| 3/8" NPT | KSG3-06-06F-NPT | KSG3-06-06M-NPT | ||||||||
| 9/16" UNF | KSG3-06F-UNF916 | KSG3-06M-UNF916 | ||||||||
| M16×1.5 | KSG3-06F-M1615 | KSG3-06M-M1615 | ||||||||
| M18×1.5 | KSG3-06F-M1815 | KSG3-06M-M1815 | ||||||||
| 8 | 12.5 | 102 | 67 | 51 | 42 | 30 | 36 | 3/8" BSP | KSG3-08-06F-BSP | KSG3-08-06M-BSP |
| 3/8" NPT | KSG3-08-06F-NPT | KSG3-08-06M-NPT | ||||||||
| 105.5 | 68 | 54 | 1/2" BSP | KSG3-08-08F-BSP | KSG3-08-08M-BSP | |||||
| 1/2" NPT | KSG3-08-08F-NPT | KSG3-08-08M-NPT | ||||||||
| 102 | 67 | 51 | M16×1.5 | KSG3-08F-M1615 | KSG3-08M-M1615 | |||||
| M18×1.5 | KSG3-08F-M1815 | KSG3-08M-M1815 | ||||||||
| 108 | 70 | 54 | M22×1.5 | KSG3-08F-M2215 | KSG3-08M-M2215 | |||||
| 12 | 20 | 128 | 85 | 65 | 48 | 36 | 41 | 1/2" BSP | KSG3-12-08F-BSP | KSG3-12-08M-BSP |
| 1/2" NPT | KSG3-12-08F-NPT | KSG3-12-08M-NPT | ||||||||
| 133 | 86 | 68 | 3/4" BSP | KSG3-12-12F-BSP | KSG3-12-12M-BSP | |||||
| 3/4" NPT | KSG3-12-12F-NPT | KSG3-12-12M-NPT | ||||||||
| 128 | 85 | 65 | M18×1.5 | KSG3-12F-M1815 | KSG3-12M-M1815 | |||||
| M22×1.5 | KSG3-12F-M2215 | KSG3-12M-M2215 | ||||||||
| 133 | 86 | 68 | M26×1.5 | KSG3-12F-M2615 | KSG3-12M-M2615 | |||||
| 16 | 25 | 148 | 95 | 80 | 55 | 41 | 50 | 3/4" BSP | KSG3-16-12F-BSP | KSG3-16-12M-BSP |
| 3/4" NPT | KSG3-16-12F-NPT | KSG3-16-12M-NPT | ||||||||
| 153 | 100.5 | 77 | 1" BSP | KSG3-16-16F-BSP | KSG3-16-16M-BSP | |||||
| 1" NPT | KSG3-16-16F-NPT | KSG3-16-16M-NPT | ||||||||
| M30×2.0 | KSG3-16F-M3020 | KSG3-16M-M3020 | ||||||||
| 20 | 31.5 | 210 | 126 | 131 | 80 | 55 | 75 | 1-1/4" BSP | KSG3-20-20F-BSP | KSG3-20-20M-BSP |
| 214 | 128 | 133 | 80 | 55 | 75 | 1-1/2" BSP | KSG3-20-24F-BSP | KSG3-20-24M-BSP |
