产品名称:BT-KSG4 螺纹型快速接头
型号:BT-KSG4
Online Service
E-mail Us
本产品没有PDF可供下载
Skype
KSG4 规格-螺纹-农业型
KSG4系列 B 型公接头可与KSNV 系列公接头互换
材质：碳钢，表面镀环保锌阀芯：针阀
密封件：以NBR为标准
挡圈：铁氟龙
工作温度：在标准NBR范围内，承受-25℃ + 125℃的温度

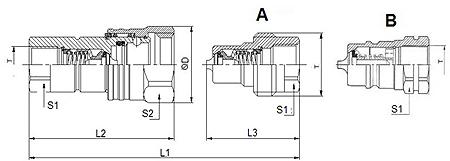

| BT | ISO | L1 | L2 | L3 | ØD | S1 | S2 | T | COD.(F) | COD.(M) |
| 4 | 6.3 | 66 | 50 | 33 | 30 | 19 | 27 | 1/4" BSP | KSG4-04F-BSP | KSG4-04M-BSP |
| 1/4" NPT | KSG4-04F-NPT | KSG4-04M-NPT | ||||||||
| 6 | 10 | 78 | 59.5 | 39 | 38 | 24 | 34 | 3/8" BSP | KSG4-06F-BSP | KSG4-06M-BSP |
| 3/8" NPT | KSG4-06F-NPT | KSG4-06M-NPT | ||||||||
| 8 | 12.5 | 94.5 | 68 | 49 | 42 | 27 | 38 | 1/2" BSP | KSG4-08F-BSP | KSG4-08M-BSP |
| 1/2" NPT | KSG4-08F-NPT | KSG4-08M-NPT | ||||||||
| 12 | 20 | 123.5 | 84 | 61.5 | 55 | 34 | 50 | 3/4" BSP | KSG4-12F-BSP | KSG4-12M-BSP |
| 3/4" NPT | KSG4-12F-NPT | KSG4-12M-NPT | ||||||||
| 16 | 25 | 139.5 | 99.5 | 73 | 60 | 41 | 55 | 1" BSP | KSG4-16F-BSP | KSG4-16M-BSP |
| 1" NPT | KSG4-16F-NPT | KSG4-16M-NPT |
