螺纹锁紧式
液压快换接头 > 螺纹锁紧式
产品名称:BT-KSG6 螺纹型快速接头
型号:BT-KSG6
Online Service
E-mail Us
本产品没有PDF可供下载
Skype
KSG6 规格-螺纹-高压型
阀芯：针阀
密封件：以NBR为标准
挡圈：铁氟龙
工作温度：在标准NBR范围内，承受-25℃ + 125℃的温度

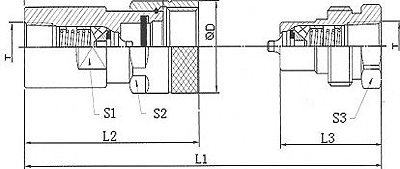

| BT | ISO | L1 | L2 | L3 | ØD | S1 | S2 | S3 | T | COD.(F) | COD.(M) |
| 4 | 6.3 | 69 | 62 | 35 | 30 | 22 | 27 | 25 | 1/4" BSP | KSG6-04F-BSP | KSG6-04M-BSP |
|
|
|
|
|
|
|
|
|
|
1/4" NPT | KSG6-04F-NPT | KSG6-04M-NPT |
| 6 | 10 | 78 | 72 | 39 | 38 | 27 | 34 | 32 | 3/8" BSP | KSG6-06F-BSP | KSG6-06M-BSP |
|
|
|
|
|
|
|
|
|
|
3/8" NPT | KSG6-06F-NPT | KSG6-06M-NPT |
| 8 | 12.5 | 100 | 80 | 49 | 42 | 34 | 38 | 34 | 1/2" BSP | KSG6-08F-BSP | KSG6-08M-BSP |
|
|
|
|
|
|
|
|
|
|
1/2" NPT | KSG6-08F-NPT | KSG6-08M-NPT |
| 12 | 20 | 123 | 95 | 61 | 55 | 41 | 50 | 46 | 3/4" BSP | KSG6-12F-BSP | KSG6-12M-BSP |
|
|
|
|
|
|
|
|
|
|
3/4" NPT | KSG6-12F-NPT | KSG6-12M-NPT |
| 16 | 25 | 135 | 105 | 72 | 60 | 50 | 55 | 50 | 1" BSP | KSG6-16F-BSP | KSG6-16M-BSP |
|
|
|
|
|
|
|
|
|
|
1" NPT | KSG6-16F-NPT | KSG6-16M-NPT |
