ISO-B type
液压快换接头 > ISO-B type
产品名称:BT-KZD 黄铜液压快速接头
型号:BT-KZD
Online Service
E-mail Us
本产品没有PDF可供下载
Skype
1.符合ISO7241-B标准
2.采用实心铜棒精密加工，在蒸汽或化学介质下比碳钢捅有更出色的性能
3. 双密封结构，在拆卸的情况下防止介质流出，方便维护
4. 精密的设计和加工保证两个提升阀完全对中，确保联接时完全打开
5. 双O 形圈设计，以适应低压或真空环境下工作
6.可与PARKER 60, FASTER HNV,HANSEN HK系列互换
| Body Size(Inch) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 |
| Rated Pressure(Mpa) | 7 | 7 | 7 | 7 | 7 | 5.5 | 5.5 | 5.5 |
| Rated Flow(L/Min) | 12 | 25 | 45 | 105 | 185 | 295 | 378 | 750 |
| Thread | PT | NPT | Metric | |||||
| Standard Seal | NBR | On request EPDM,VITION and FKM seals | ||||||
| Temperature | -20+80℃ | |||||||

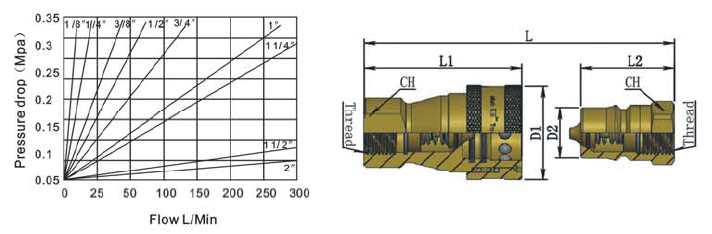

| Part No | ISO | Thread | L | L1 | L2 | D1 | D2 | CH1 | CH2 | |
| BT-KZD-02 | 6.3 | 1/4 | 72 | 58 | 36 | 28 | 14.2 | 19 | 19 | |
| BT-KZD-03 | 10 | 3/8 | 80.5 | 65 | 40 | 35 | 19.1 | 22 | 22 | |
| BT-KZD-04 | 12.5 | 1/2 | 88.5 | 72 | 44 | 45 | 23.5 | 29 | 29 | |
| BT-KZD-06 | 20 | 3/4 | 104 | 88 | 52 | 55 | 31.4 | 36 | 36 | |
| BT-KZD-08 | 25 | 1 | 123 | 102 | 62 | 65 | 37.8 | 41 | 41 | |
| BT-KZD-10 | 32.5 | 1 1/4 | 140 | 115 | 70 | 77 | 54 | 54 | ||
| BT-KZD-12 | 40 | 1 1/2 | 150 | 124 | 75 | 88 | 63 | 63 | ||
| BT-KZD-16 | 50 | 2 | 160 | 132 | 80 | 108 | 77 | 77 | ||
JS-KZD ZG 12 F
