焊接接头
不锈钢仪表接头 > 焊接接头
产品名称:外螺纹焊接套筒
型号:IS-WMA-N
Online Service
E-mail Us
本产品没有PDF可供下载
Skype
Please select connections.

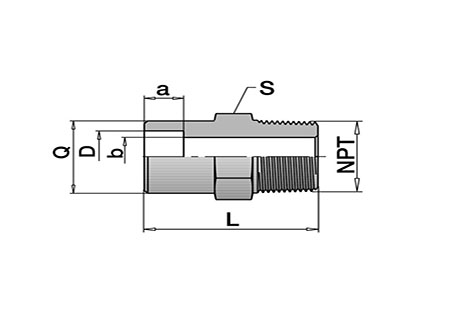

| D | NPT | a | b | S | Q | L | bar | IS-No. |
| 1/4 | 1/4 | 7,1 | 4,8 | 14,3 | 12,2 | 29,2 | 550 | WMAz14N14 |
| 3/8 | 1/4 | 7,9 | 7,1 | 15,9 | 15,2 | 31,8 | 550 | WMAz38N14 |
| 3/8 | 3/8 | 7,9 | 7,1 | 17,5 | 15,2 | 31,8 | 540 | WMAz38N38 |
| 3/8 | 1/2 | 7,9 | 7,1 | 22,2 | 15,2 | 37,3 | 530 | WMAz38N12 |
| 1/2 | 1/4 | 9,7 | 7,1 | 19,1 | 18,5 | 33,3 | 450 | WMAz12N14 |
| 1/2 | 3/8 | 9,7 | 9,7 | 19,1 | 18,5 | 33,3 | 450 | WMAz12N38 |
| 1/2 | 1/2 | 9,7 | 10,4 | 22,2 | 18,5 | 38,9 | 450 | WMAz12N12 |
