焊接接头
不锈钢仪表接头 > 焊接接头

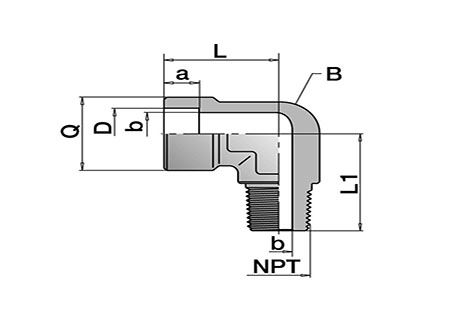

产品名称:外螺纹焊接弯头
型号:IS-WME-N
Online Service
E-mail Us
本产品没有PDF可供下载
Skype
Please select connections.
| D | NPT | a | b | L | L1 | Q | B | bar | IS-No. |
| 1/4 | 1/4 | 7,1 | 4,8 | 20,1 | 26,7 | 12,2 | 12,7 | 550 | WMEz14N14 |
| 3/8 | 1/4 | 7,9 | 7,1 | 26,4 | 26,7 | 16,3 | 12,7 | 550 | WMEz38N14 |
| 3/8 | 3/8 | 7,9 | 7,1 | 24,6 | 29,7 | 15,2 | 17,5 | 540 | WMEz38N12 |
| 3/8 | 1/2 | 7,9 | 7,1 | 25,9 | 36,8 | 15,2 | 20,6 | 530 | WMEz12N12 |
| 1/2 | 1/2 | 9,7 | 10,4 | 27,4 | 36,8 | 18,5 | 20,6 | 450 | WMEz38N12 |
