产品名称:可调节式直角外螺纹管接头
型号:u2-ME-U-SAE
Online Service
E-mail Us
本产品没有PDF可供下载
Skype

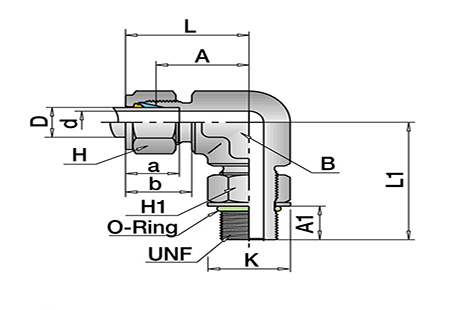

Fractional tube to male parallel SAE thread
| fractional Tube to male SAE-Thread | |||||||||||||
| D | SAE/MS UNF | d | B | H | H1 | a | b | A | A1 | L | L1 | K | u2-No. |
| 1/4 | 7/16-20 | 4,8 | 1/2 | 9/16 | 9/16 | 15,2 | 17,8 | 21,1 | 9,9 | 28,4 | 28,4 | 16,5 | MEz14U716-DOR |
| 1/4 | 9/16-18 | 4,8 | 5/8 | 9/16 | 11/16 | 15,2 | 17,8 | 23,1 | 11,2 | 30,5 | 32,3 | 20,1 | MEz14U916-DOR |
| 5/16 | 1/2-20 | 5,8 | 9/16 | 5/8 | 5/8 | 16,3 | 18,5 | 22,9 | 9,9 | 30,2 | 29,5 | 18,3 | MEz516U12-DOR |
| 3/8 | 9/16-18 | 7,1 | 5/8 | 11/16 | 11/16 | 16,8 | 19,3 | 24,6 | 11,2 | 32,0 | 32,3 | 20,1 | MEz38U916-DOR |
| 3/8 | 3/4-16 | 7,1 | 13/16 | 11/16 | 7/8 | 16,8 | 19,3 | 27,4 | 12,7 | 34,8 | 37,8 | 25,7 | MEz38U34-DOR |
| 1/2 | 3/4-16 | 10,4 | 13/16 | 7/8 | 7/8 | 22,9 | 21,8 | 27,4 | 12,7 | 37,6 | 37,8 | 25,7 | MEz12U34-DOR |
| 5/8 | 7/8-14 | 12,7 | 15/16 | 1 | 1 | 24,4 | 21,8 | 29,5 | 14,2 | 39,6 | 43,4 | 29,5 | MEz58U78-DOR |
| 3/4 | 1 1/16-12 | 15,7 | 1 1/16 | 1 1/8 | 1 1/4 | 24,4 | 21,8 | 31,2 | 16,8 | 41,4 | 48,8 | 36,6 | MEz34U1116-DOR |
| 7/8 | 1 3/16-12 | 18,3 | 1 3/16 | 1 3/16 | 1 3/8 | 25,9 | 21,8 | 33,0 | 16,8 | 43,2 | 50,5 | 40,4 | MEz78U1316-DOR |
| 1 | 1 5/16-12 | 22,4 | 1 3/8 | 1 1/2 | 1 1/2 | 31,2 | 26,4 | 38,4 | 16,8 | 50,5 | 53,6 | 43,9 | MEz1U1516-DOR |
