过渡接头
不锈钢仪表接头 > 过渡接头
产品名称:外螺纹三通管接头
型号:IC-MT-R
Online Service
E-mail Us
本产品没有PDF可供下载
Skype

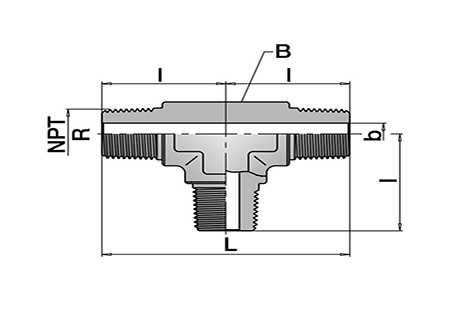

Female ISO Tapered Thread
| NPT | b | I | B | L | bar | IC-No. |
| 1/8 | 4,8 | 11,1 | 11.1 | 44,7 | 680 | MT-N18 |
| 1/4 | 7,1 | 12,7 | 12,7 | 48,2 | 550 | MT-N14 |
| 3/8 | 9,6 | 17,5 | 17,5 | 59,4 | 530 | MT-N38 |
| 1/2 | 11,9 | 20,6 | 20,6 | 73,7 | 530 | MT-N12 |
|
|
|
|
|
|
|
|
| R | b | I | B | L | bar | IC-No. |
| 1/8 | 4,8 | 18,0 | 12,7 | 36,0 | 680 | MT-R18 |
| 1/4 | 7,0 | 23,8 | 14,3 | 47,6 | 550 | MT-R14 |
| 3/8 | 10,0 | 26,0 | 17,5 | 52,0 | 530 | MT-R38 |
| 1/2 | 12,0 | 37,0 | 22,2 | 74,0 | 530 | MT-R12 |
