Thread lock Type

Hydraulic quick coupling > Thread lock Type

Product Name:BT-G Thread Tock Wing Couplings

Online Service
E-mail Us

This BTG  thread lock wing quick couplings  can be used in a wide range of industrial applications where heave-duty coupling are required that can be connected under pressure,with littel or no spillate,It is ideal for connecting hydraulic lines on oil field equipment like power tongs,swivels and mobile drilling rigs,it is aso widely used on dump trailer to connect the tractor to wet-line hydraulic systems.

1. Thread lock mechanism, greatly improve pressure endurance and prevent disconnect accidently
2. Hard Chromium alloy ball valve with spring loaded for positive seating of the valve
3. Threaded valve retainer stop and alignment the valve positively
4. Interchanble with FASTER CVE

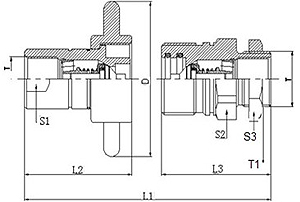

PART NO ISO L1 L2 L3 D S1 S2 S3 T1 T2
BTG-12F 20 128.2 78.9 75.7 115 33 46 50 1 1/4  3/4
BTG-16F 25 145 88.5 83 115 40 55 60 1 1/4 1
