Product Name:BT-KZE-B High Pressure Screw Type Quick Couplings
Model:BT-KZE-B
Online Service
E-mail Us
NO PDF
Skype
1. Thread lock mechanism, greatly improve pressure endurance and prevent disconnect accidently
2. Ball valve and poppet valve mechanism available
3. Hard Chromium alloy ball valve with spring loaded for positive seating of the valve
4. Threaded valve retainer stop and alignment the valve positively
5. The flat valve mechanism decrease the flow leakage when uncoupled and lower the air entered in when coupled
6. Interchangeable with PARKER FE, HANSEN QA 2900, CEJN X62
| Body Size(inch) | 1/4 | 3/8 |
| Rated Pressure（Mpa) | 70 | 70 |
| Rated Flow(L/min) | 15 | 20 |
| Temperature Range | 20+80℃ | |
| Standard Seal | NBR | On request EPDM,VITON and FKM seals |
| Thread | NPT | PT |

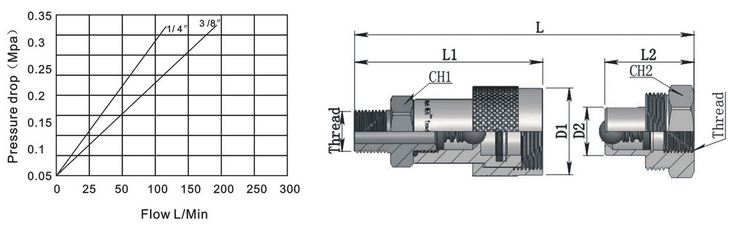

| PART NO | Thread | L | L1 | L2 | D1 | D2 | CH1 | CH2 | Ball | Poppet |
| KZE-B-02 | 1/4 | 80 | 59.5 | 32.5 | 28.5 | 15.8 | 22 | 19 | ＋ | |
| KZE-B-02 | 1/4 | 80 | 60.5 | 32 | 29 | 15.8 | 22 | 19 | ＋ | |
| KZE-B-03 | 3/8 | 85 | 73.5 | 35 | 35 | 19 | 25 | 32 | ＋ | |
| KZE-B-03 | 3/8 | 85 | 72 | 38 | 35 | 19 | 24 | 32 | ＋ |
