Product Name:BT-FF ISO16028 Flat Face Quick Couplings
Model:BT-FF
Online Service
E-mail Us
NO PDF
Skype
1. Comply to ISO 16028 standard
2. Sleeve locking mechanism is engaged by rotating sleeve after connection, it prevents accidental disconnection when the coupling is dragged along the ground and terrible shock
3. Sleeve mechanism is designed to help prevent dirt from entering the internal, the sleeve covers the retaining ring and also incorporates a dust seal in the spring area
4. Excellent flow VS flow drop characteristics when compared with other low spill quick coupling
5. The flat valve mechanism decrease the flow leakage when uncoupled and lower the air entered in when coupled
6. Interchangeable with PARKER FE, HANSEN QA 2900 ,CEJN X62
| Body Size(inch) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | ||||||
| Rated Pressure（Mpa) | 31.5 | 25 | 25 | 25 | 25 | 20 | ||||||
| Rated Flow(L/min) | 11 | 22 | 45 | 75 | 100 | 185 | ||||||
| Temperature Range | 20+80℃ | |||||||||||
| Standard Seal | NBR | On request EPDM,VITON and FKM seals | ||||||||||
| Thread | NPT | PT | BSP | Metric | ||||||||

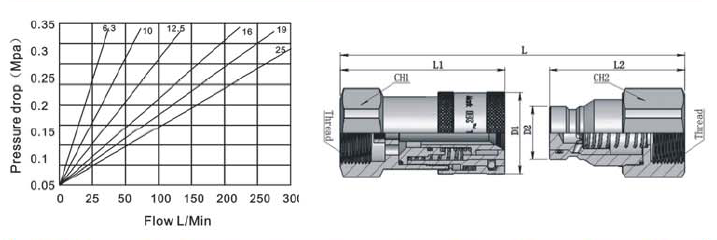

| Part No | ISO | Thread | L | L1 | L2 | D1 | D2 | CH1 | CH2 |
| BT-PT-02 | 6.3 | 1/4 | 85 | 48 | 48 | 29.5 | 16.1 | 22 | 22 |
| BT-PT-03 | 10 | 3/8 | 110 | 64 | 61.5 | 33.5 | 19.7 | 27 | 24 |
| BT-PT-034 | 10 | 1/2 | 124 | 74 | 68 | 33.5 | 19.7 | 27 | 27 |
| BT-PT-04 | 12.5 | 1/2 | 124 | 74 | 68 | 39.5 | 24.5 | 32 | 32 |
| BT-PT-046 | 12.5 | 3/4 | 131 | 78.5 | 70.5 | 39.5 | 24.5 | 36 | 36 |
| BT-PT-056 | 16 | 3/4 | 131 | 78.5 | 70.5 | 43.5 | 27 | 36 | 36 |
| BT-PT-068 | 19 | 1 | 156 | 93 | 85.5 | 49.5 | 30 | 45 | 45 |
| BT-PT-081 | 25 | 1 1/4 | 173 | 106 | 90 | 56.5 | 36 | 55 | 55 |
