BT-AC Series couplings feature a ball locking mechanism and no valving. The availability of this series quick couplings in a broad range of metals ( steel, brass and SS304) and seal materials, allows their use with most fluids.
APPLICATION
This kind of series are non-valved coupling for applications where maximum flow is required. Their smooth, open bore offers the lowest pressure drop of any quick coupling design and is ideal for applications such as high-pressure water and steam washers, carpet cleaners and mould coolant lines. They are often used in food processing, on fluid and dye transfer lines.
| Body Size (Inch) | 1/8 | 1/4 | 3/8 | 1/2 |
| Rated Pressure (Psi) (Brass Nipple) | 1000 | 1000 | 1000 | 1000 |
| Rated Pressure (Psi) (Steel Nipple) | 2000 | 2000 | 2000 | 2000 |
| Rated Flow | 3 | 6 | 12 | 16 |
| Temperature | -20~+100℃ | |||

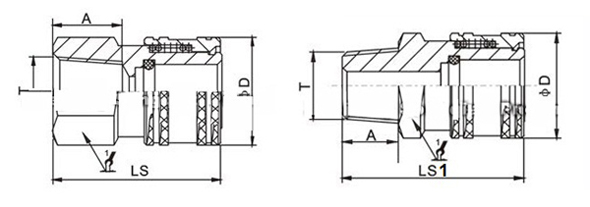

| PART NO. | LS | LS1 | ￠D | HEX | A | T |
| DT-01SF | 27 | 29 | 18 | 14 | 10 | NPT1/8 |
| DT-02SF | 37 | 39.5 | 24 | 19 | 12 | NPT1/4 |
| DT-03SF | 41.5 | 43 | 29 | 24 | 13 | NPT3/8 |
| DT-04SF | 51 | 53 | 33 | 29 | 15 | NPT1/2 |

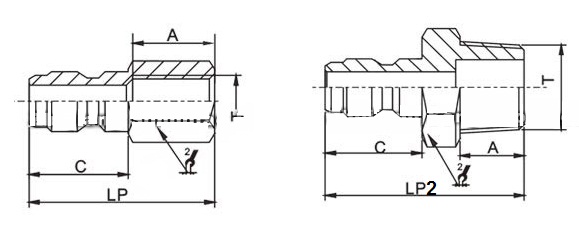

| PART NO. | LP | LP1 | C | HEX2 | A | T |
| DT-01PF | 27 | 29 | 17 | 11 | 10 | NPT1/8 |
| DT-02PF | 37 | 39.5 | 19.5 | 14 | 12 | NPT1/4 |
| DT-03PF | 41.5 | 43 | 22.5 | 17 | 13 | NPT3/8 |
| DT-04PF | 51 | 53 | 26 | 22 | 15 | NPT1/2 |
