Flat face type
Hydraulic quick coupling > Flat face type
Product Name:BT-FS ISO16028 Quick Couplings SS304/316
Model:BT-FS
Online Service
E-mail Us
NO PDF
Skype
1.According to ISO16028 standard
2.Material SS304 SS316
3.Interchanble with PARKER FE series,STUCHI A8008 series
Application:
The flat face coupling
are widely used in the public utility market where hydraulic oil
spillage can constitute a serious safety hazard, particularly in
overhead bucket hoists that are used for maintenance of high-voltage
power transmission lines.These couplings are also used for quick change
of hydraulic Tools in construction, railway maintenance and mining
industries. The ease of cleaning makes them ideal for use in these types
of hostile environments.
| Body Size(inch) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | ||||||
| Rated Pressure（Mpa) | 31.5 | 25 | 25 | 25 | 25 | 20 | ||||||
| Rated Flow(L/min) | 11 | 22 | 45 | 75 | 100 | 185 | ||||||
| Temperature Range | 20+80℃ | |||||||||||
| Standard Seal | NBR | On request EPDM,VITON and FKM seals | ||||||||||
| Thread | NPT | PT | BSP | Metric |
|
|||||||

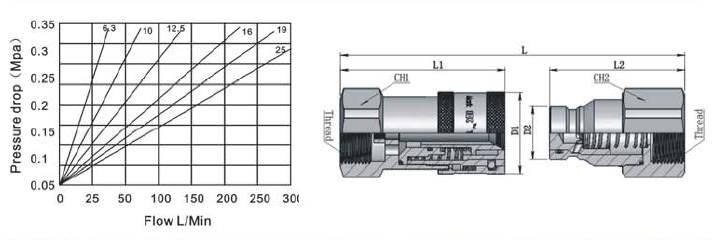

| Part No | ISO | Thread | L | L1 | L2 | D1 | D2 | CH1 | CH2 |
| BT-PT-02 | 6.3 | 1/4 | 85 | 48 | 48 | 29.5 | 16.1 | 22 | 22 |
| BT-PT-03 | 10 | 3/8 | 110 | 64 | 61.5 | 33.5 | 19.7 | 27 | 24 |
| BT-PT-034 | 10 | 1/2 | 124 | 74 | 68 | 33.5 | 19.7 | 27 | 27 |
| BT-PT-04 | 12.5 | 1/2 | 124 | 74 | 68 | 39.5 | 24.5 | 32 | 32 |
| BT-PT-046 | 12.5 | 3/4 | 131 | 78.5 | 70.5 | 39.5 | 24.5 | 36 | 36 |
| BT-PT-056 | 16 | 3/4 | 131 | 78.5 | 70.5 | 43.5 | 27 | 36 | 36 |
| BT-PT-068 | 19 | 1 | 156 | 93 | 85.5 | 49.5 | 30 | 45 | 45 |
| BT-PT-081 | 25 | 1 1/4 | 173 | 106 | 90 | 56.5 | 36 | 55 | 55 |
More information
If you have any enquiry about quotation or cooperation, please feel free to email us at info@bigtreeindustrial.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
