ISO-A type
Hydraulic quick coupling > ISO-A type
E-mail Us
SkypeBT-S7 Series offer Plastic / Aluminum caps and plugs for male/female.
It is ideal for hydraulic applications where frequent connection and disconnection are required.
Working components change can be accomplished in seconds increasing production and maintenance efficiency.
INTERCHANGE STANDARD:
Parker6600
Perfecting K
Faster ANV
Safeway S56
Snap Tite 61
Tomco A5600
Aeroquip FD56
DNP PAV
Stucchi BIR
APPLICATION:
Versatile BT-S7 series couplings are used in a wide range of hydraulic applications including construction equipment, manufacturing machinery, and in-plant systems.
They can be found anyplace where the fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment.
SPECIFICATIONS-STEEL
Materials: zinc-plated carbon steel body
Valve: Poppet Type
Back-up ring: in pure Teflon
Seals: standard in nitrile NBR. On request FKM,EPDM and VMQ seals
Working temperature: with standard seals -25℃ + 125℃

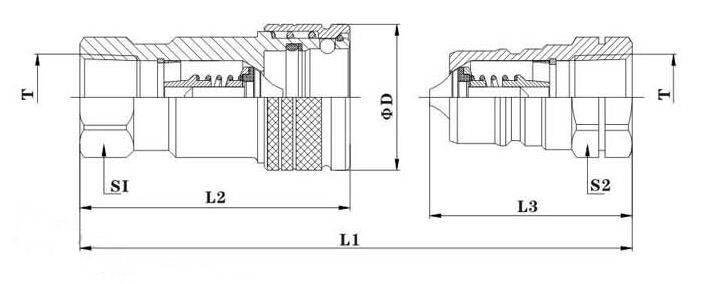

| BT | ISO | L1 | L2 | L3 | ØD | S1 | S2 | T | COD.(F) | COD.(M) |
| 4 | 6.3 | 70 | 49 | 35 | 26.2 | 19 | 19 | 1/4" BSP | S7-04F-BSP | S7-04M-BSP |
| 1/4" BSPT | S7-04F-BSPT | S7-04M-BSPT | ||||||||
| 1/4" NPT | S7-04F-NPT | S7-04M-NPT | ||||||||
| 6 | 10 | 85 | 60.5 | 42.5 | 31 | 22 | 22 | 3/8" BSP | S7-06F-BSP | S7-06M-BSP |
| 3/8" BSPT | S7-06F-BSPT | S7-06M-BSPT | ||||||||
| 3/8" NPT | S7-06F-NPT | S7-06M-NPT | ||||||||
| 8 | 12.5 | 94 | 68.5 | 46.5 | 38 | 27 | 27 | 1/2" BSP | S7-08F-BSP | S7-08M-BSP |
| 1/2" BSPT | S7-08F-BSPT | S7-08M-BSPT | ||||||||
| 1/2" NPT | S7-08F-NPT | S7-08M-NPT | ||||||||
| 3/4" UNF | S7-08F-UNF34 | S7-08M-UNF34 | ||||||||
| M22*1.5 | S7-08F-M2215 | S7-08M-M2215 | ||||||||
| 12 | 20 | 115 | 85 | 57.5 | 46 | 34 | 34 | 3/4" BSP | S7-12F-BSP | S7-12M-BSP |
| 3/4" BSPT | S7-12F-BSPT | S7-12M-BSPT | ||||||||
| 3/4" NPT | S7-12F-NPT | S7-12M-NPT | ||||||||
| 16 | 25 | 131.5 | 99.5 | 65.5 | 52 | 41 | 41 | 1" BSP | S7-16F-BSP | S7-16M-BSP |
| 1" BSPT | S7-16F-BSPT | S7-16M-BSPT | ||||||||
| 1" NPT | S7-16F-NPT | S7-16M-NPT | ||||||||
| 20 | 31.5 | 148 | 116 | 74 | 70 | 50 | 50 | 1-1/4" BSP | S7-20F-BSP | S7-20M-BSP |
| 1-1/4" BSPT | S7-20F-BSPT | S7-20M-BSPT | ||||||||
| 1-1/4" NPT | S7-20F-NPT | S7-20M-NPT | ||||||||
| 24 | 40 | 168 | 136.5 | 85 | 83 | 60 | 60 | 1-1/2" BSP | S7-24F-BSP | S7-24M-BSP |
| 1-1/2" BSPT | S7-24F-BSPT | S7-24M-BSPT | ||||||||
| 1-1/2" NPT | S7-24F-NPT | S7-24M-NPT | ||||||||
| 32 | 50 | 200.7 | 160 | 100 | 99 | 75 | 75 | 2" BSP | S7-32F-BSP | S7-32M-BSP |
| 2" BSPT | S7-32F-BSPT | S7-32M-BSPT | ||||||||
| 2" NPT | S7-32F-NPT | S7-32M-NPT |
