Hydraulic quick coupling > Thread lock Type
CHARACTERISTICS:
Available in four versions: DN10 (3/8"), DN13 (1/2"), DN20 (3/4") and DN25 (1") with valve.
Supplied in a wide range of threads: metric (BSP) or NPT threads inside or metric outside threads with light or heady type.INTERCHANGE STANDARD:
Faster CVV
DNP PVV3
APPLICATION:
For their strength KSG3 couplers are highly recommended for heavy duty industrial applications. The screw system allows the connection either with male or female under pressure.
SPECIFICATION:
Materials: zinc-plated carbon steel body
Back-up ring: in pure Teflon
Seals: standard in nitrile NBR. On request FKM,EPDM and VMQ seals
Working temperature: with standard seals -25℃ + 125℃

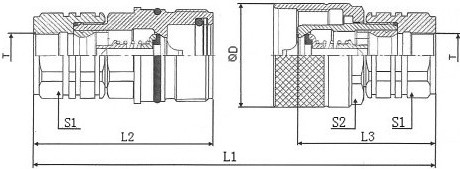

BT | ISO | L1 | L2 | L3 | ØD | S1 | S2 | T | COD.(F) | COD.(M) |
4 | 6.3 | 93 | 59 | 58 | 35 | 19 | 30 | 1/4" BSP | KSG3-04-04F-BSP | KSG3-04-04M-BSP |
1/4" NPT | KSG3-04-04F-NPT | KSG3-04-04M-NPT | ||||||||
6 | 10 | 102.4 | 65.4 | 49 | 35 | 24 | 30 | 1/4" BSP | KSG3-06-04F-BSP | KSG3-06-04M-BSP |
1/4" NPT | KSG3-06-04F-NPT | KSG3-06-04M-NPT | ||||||||
3/8" BSP | KSG3-06-06F-BSP | KSG3-06-06M-BSP | ||||||||
3/8" NPT | KSG3-06-06F-NPT | KSG3-06-06M-NPT | ||||||||
9/16" UNF | KSG3-06F-UNF916 | KSG3-06M-UNF916 | ||||||||
M16×1.5 | KSG3-06F-M1615 | KSG3-06M-M1615 | ||||||||
M18×1.5 | KSG3-06F-M1815 | KSG3-06M-M1815 | ||||||||
8 | 12.5 | 102 | 67 | 51 | 42 | 30 | 36 | 3/8" BSP | KSG3-08-06F-BSP | KSG3-08-06M-BSP |
3/8" NPT | KSG3-08-06F-NPT | KSG3-08-06M-NPT | ||||||||
105.5 | 68 | 54 | 1/2" BSP | KSG3-08-08F-BSP | KSG3-08-08M-BSP | |||||
1/2" NPT | KSG3-08-08F-NPT | KSG3-08-08M-NPT | ||||||||
102 | 67 | 51 | M16×1.5 | KSG3-08F-M1615 | KSG3-08M-M1615 | |||||
M18×1.5 | KSG3-08F-M1815 | KSG3-08M-M1815 | ||||||||
108 | 70 | 54 | M22×1.5 | KSG3-08F-M2215 | KSG3-08M-M2215 | |||||
12 | 20 | 128 | 85 | 65 | 48 | 36 | 41 | 1/2" BSP | KSG3-12-08F-BSP | KSG3-12-08M-BSP |
1/2" NPT | KSG3-12-08F-NPT | KSG3-12-08M-NPT | ||||||||
133 | 86 | 68 | 3/4" BSP | KSG3-12-12F-BSP | KSG3-12-12M-BSP | |||||
3/4" NPT | KSG3-12-12F-NPT | KSG3-12-12M-NPT | ||||||||
128 | 85 | 65 | M18×1.5 | KSG3-12F-M1815 | KSG3-12M-M1815 | |||||
M22×1.5 | KSG3-12F-M2215 | KSG3-12M-M2215 | ||||||||
133 | 86 | 68 | M26×1.5 | KSG3-12F-M2615 | KSG3-12M-M2615 | |||||
16 | 25 | 148 | 95 | 80 | 55 | 41 | 50 | 3/4" BSP | KSG3-16-12F-BSP | KSG3-16-12M-BSP |
3/4" NPT | KSG3-16-12F-NPT | KSG3-16-12M-NPT | ||||||||
153 | 100.5 | 77 | 1" BSP | KSG3-16-16F-BSP | KSG3-16-16M-BSP | |||||
1" NPT | KSG3-16-16F-NPT | KSG3-16-16M-NPT | ||||||||
M30×2.0 | KSG3-16F-M3020 | KSG3-16M-M3020 | ||||||||
20 | 31.5 | 210 | 126 | 131 | 80 | 55 | 75 | 1-1/4" BSP | KSG3-20-20F-BSP | KSG3-20-20M-BSP |
214 | 128 | 133 | 80 | 55 | 75 | 1-1/2" BSP | KSG3-20-24F-BSP | KSG3-20-24M-BSP |
