Product Name:BT-K American Type Hydraulic Quick Coupling
Model:BT-K
Online Service
E-mail Us
NO PDF
Skype
1.The
smooth, open bore with no valving offers minimal pressure drop and
allows easy cleaning in applications where the same lines are used for
more than one media.
4.Compatible with PARKER ST Series, HANSEN ST Series, FOSTER FST Series.
2.Couplers and nipples are machined from solid bar stock providing the quality coupling that is durable.
3.Nipples are available in brass and zinc-Plated steel.
| Body Size (Inch) | 1/8 | 1/4 | 3/8 | 1/2 |
| Rated Pressure (Psi) (Brass Nipple) | 1000 | 1000 | 1000 | 1000 |
| Rated Pressure (Psi) (Steel Nipple) | 2000 | 2000 | 2000 | 2000 |
| Rated Flow | 3 | 6 | 12 | 16 |
| Temperature | -20~+100℃ | |||

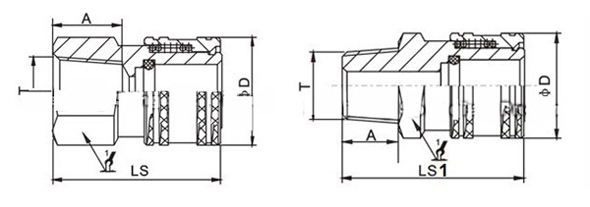

| PART NO. | LS | LS1 | ￠D | HEX | A | T |
| DT-01SF | 27 | 29 | 18 | 14 | 10 | NPT1/8 |
| DT-02SF | 37 | 39.5 | 24 | 19 | 12 | NPT1/4 |
| DT-03SF | 41.5 | 43 | 29 | 24 | 13 | NPT3/8 |
| DT-04SF | 51 | 53 | 33 | 29 | 15 | NPT1/2 |

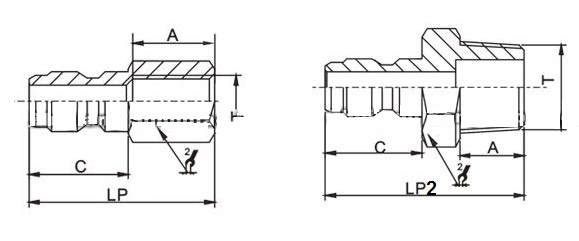

| PART NO. | LP | LP1 | C | HEX2 | A | T |
| DT-01PF | 27 | 29 | 17 | 11 | 10 | NPT1/8 |
| DT-02PF | 37 | 39.5 | 19.5 | 14 | 12 | NPT1/4 |
| DT-03PF | 41.5 | 43 | 22.5 | 17 | 13 | NPT3/8 |
| DT-04PF | 51 | 53 | 26 | 22 | 15 | NPT1/2 |
